Theory of Parsers

A parser receives a string of tokens from the lexer and verifies that the given string of tokens can be constructed by the grammar of source language. We want a parser to report any syntax errors in an actionable fashion and to recover from common errors to continue parsing the rest of the source program.

The construction of the abstract syntax tree need not to be explicit, since translation actions can be interspersed with parsing.

In general, there are three classes of parsers:

Universal
Top-Down
Bottom-Up

Universal parsing techniques can parse any grammar, but they are too expensive for real-world problems. The most efficient top-down and bottom-up parsers only work for a sub-classes of grammars. Several of these sub-classes, particularly LL and LR grammars, are expressive enough to describe today's programming languages.

Hand-implemented parsers usually use LL grammars while auto-generated parsers use a larger class of LR grammars.

                         ┌───────────────────┐                         ┌───────────────────┐
                         │     Top-Down      │                         │     Bottom-Up     │
                         └─────────┬─────────┘                         └─────────┬─────────┘
                                   │                                             │
                                   │                                             │
                         ┌─────────▼─────────┐                         ┌─────────▼─────────┐
                    ┌────┤ Recursive-Descent ├────┐                    │       LR(k)       │
                    │    └───────────────────┘    │                    └───────────────────┘
                    │                             │
                    │                             │
          ┌─────────▼─────────┐         ┌─────────▼─────────┐
          │    Backtracing    │         │  Non-Backtracing  │
          └─────────┬─────────┘         └─────────┬─────────┘
                    │                             │
                    │                             │
                    │                   ┌─────────▼─────────┐
                    │                   │    Predictive     │
                    │                   └─────────┬─────────┘
                    │                             │
                    │                             │
                    |    ┌───────────────────┐    |
                    └────▶       LL(k)       ◀────┘
                         └───────────────────┘

Error-Recovery Strategies

It is very important to plan for the error handling right from the begining, both at language design level and compiler design level. We can describe the common programming errors using the following categories:

Lexical errors
Syntactic errors
Semantic errors
Logical errors

We want a parser to report errors clearly and accurately. We also want it to recover from each error quickly enough, so it can detect additional errors. If the number of errors exceeds from a limit, it is better for the parser to stop rather than producing an avalanche of errors. And all of that should not hurt the performance of parser significantly.

A few semantic errors, such as type mismatches, can be detected during parsing too. In general, accurate detection of semantic and logical errors at compile time is not easy.

Panic-Mode Recovery

In this method, when encountered with an error, the parser discards input symbols one at a time until one of a designated set of synchronizing tokens is found. The synchronizing tokens are well-defined symbols with clear and unambiguous role.

Using this method, the compiler designer need to select the synchronizing tokens. Panic-mode often skips a considerable amount of input without checking it for additional errors; however, it is a simple method and guaranteed not to go into an infinite loop.

Phrase-Level Recovery

In the second method, the parser performs a local correction on the remaining input when discovering an error. For example, it replaces the remaining input by a symbol that allows the parser to continue (replacing a comma with a semicolon). The compiler designer must be cautious about the replacement since it can lead to infinite loop.

The major drawback of this method is the complexity when dealing with a situation in which the actual error has occurred before the point of detection.

Error Productions

Another appraoch would be anticipating common errors that might be encountered. We can then augment the grammar with a set of auxiliary production rules that generate the erroneous constructs. The parser can then generate appropriate error detections and corrections for the erroneous constructs.

Global Correction

Ideally, we want our parser to make as few changes as possible when dealing with an incorrect input string. There are algorithms for choosing a minimal sequence of changes to obtain a globally least-cost correction. These optimization methods are too expensive in terms of time and memory complexities.

In fact, the notion of least-cost correction provides a benchmark for evaluating other practical error-recovery techniques.

Context-Free Grammars

A context-free grammar G = (V, Σ, R, S) is defined by four sets:

V is a set of terminal symbols from which strings are formed. Terminal symbols are also referred to as tokens.
Σ is a set of non-terminals symbols that denote sets of strings. Non-terminal symbols are sometimes called syntactic variables. Non-terminals impose a hierarchical structure on the language.
R = V × (V ∪ Σ)* is a set of productions, where each production consists of a non-terminal (head), an arrow, and a sequence of terminals and/or non-terminals (body).
S ∈ V is one of the non-terminal symbols designated as the start symbol. The set of strings denoted by the start symbol is the language generated by the grammar.

In this document, we follow these conventions:

Terminal symbols:
1. Lowercase letters early in the alphabet (a, b, c).
2. The digits 0, 1, ..., 9.
3. Operator and punctuation symbols such as +, *, ,, (, ).
Non-terminal symbols:
1. Uppercase letters early in the alphabet (A, B, C).
2. The letter S, which is the start symbol.
Uppercase letters late in the alphabet (X, Y, Z) represent terminal or non-terminal grammar symbols.
Lowercase letters late in the alphabet (u, v, ..., z) represent strings of terminals.
Lowercase Greek letters (α, β, γ) represent strings of grammar symbols (terminals and non-terminals).

Context-free languages are a superset of regular languages and they are more expressive. Every regular expression is a context-free grammar too, but not vice-versa.

Grammars are capable of describing most, but not all, of the syntax of programming languages. A few syntactic constructs cannot be specified using grammars alone.

The problem of checking that identifiers must be declared before they are used.
The problem of checking that the number of formal parameters in the declaration of a function agrees with the number of actual parameters in a use of the function.

We can say the string of terminals (tokens) accepted by a parser form a superset of the programming language. Hence, subsequent phases of the compiler must analyze the result of parsing to ensure compliance with other requirements that cannot be enforced by the parser.

Derivations

The construction of a parse tree can be made precise by taking a derivational approach, in which productions are treated as rewriting rules. Beginning with the start symbol, each rewriting step replaces a non-terminal by the body of one of its productions. This derivational view corresponds to the top-down construction of a parse tree. Bottom-up parsing is related to a class of derivations known as rightmost derivations, in which the rightmost non-terminal is rewritten at each step.

Let's consider a non-terminal A in the middle of a sequence of grammar symbols (αAβ), where α and β are arbitrary strings of grammar symbols. Suppose A → γ is a production. Then, we write αAβ ⇒ αγβ. The symbol ⇒ means "derives in one step". ⇒^* means "derives in zero or more steps" and ⇒⁺ means "derives in one or more steps".

α ⇒^* α, for any string α.
If α ⇒^* β and β ⇒^* γ, then α ⇒^* γ.

α is a sentential form of G if S ⇒^* α where S is the start symbol of grammar G. A sentential form may contain both terminals and non-terminals, and may be empty. A sentence of G is a sentential form with no non-terminals. A string of terminals w is in L(G), the language generated by G, if and only if w is a sentence of G (S ⇒^* w). If two grammars generate the same language, the grammars are said to be equivalent.

At each step in a derivation, there are two choices to be made.

In leftmost derivations, the leftmost non-terminal in each sentential is always chosen. If α ⇒ β is a step in which the leftmost non-terminal in α is replaced, we denote it by α ⇒_lm β.
In rightmost derivations, the rightmost non-terminal is always chosen; We denote this case by α ⇒_rm β.

Similarly, every leftmost step can be written as wAγ ⇒_lm wδγ, where w consists of terminals only, A → δ is the production applied, and γ is a string of grammar symbols (terminals and non-terminals). When α derives β by a leftmost derivation, we denote it by α ⇒^*_lm β. If S ⇒^*_lm α then we say that α is a left-sentential form of the grammar G.

Rightmost derivations are called canonical derivations.

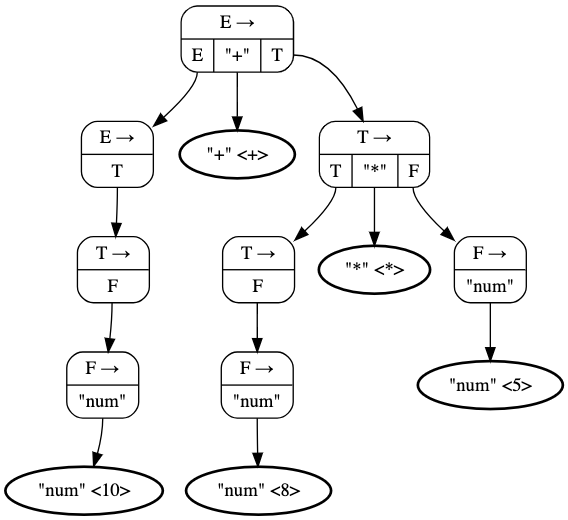

Abstract Syntax Trees (Parse Trees)

In an abstract syntax tree or a parse tree, each interior node represents a production. An interior node is labeled with a non-terminal in the head of the production; the children of the node are labeled, from left to right, by the symbols in the body of the production. The leaves of a parse tree are labeled by terminals or non-terminals and, read from left to right, constitute a sentential form, called the yield or frontier of the tree.

An abstract syntax tree does not show the order in which productions are applied to replace non-terminals. Hence, there is a many-to-one relationship between derivations and parse trees.

Every AST (parse tree) is associated with one unique leftmost derivation and one unique rightmost derivation.

Ambiguous Grammars

A grammar that produces more than one syntax tree for the same string of terminals is ambiguous. In other words, an ambiguous grammar is one that produces more than one leftmost derivation or more than one rightmost derivation for the same sentence.

Consider the following ambiguous grammar.

E → E + E | E * E | - E | ( E ) | id

Now let's say we want to parse the sentence id + id * id. We can derive this sentence using a leftmost derivation in two different ways.

E ⇒ E + E ⇒ id + E ⇒ id + E * E ⇒ id + id * E ⇒ id + id * id

E ⇒ E * E ⇒ E + E * E ⇒ id + E * E ⇒ id + id * E ⇒ id + id * id

And the corresponding syntax trees are shown below.

        ┌────E────┐              ┌────E────┐
        │    │    │              │    │    │
        E    + ┌──E──┐        ┌──E──┐ *    E
               │  │  │        │  │  │
               E  *  E        E  +  E
               │     │        │     │
               id   id        id   id

Ambiguity Elimination

Sometimes, an ambiguous grammar can be rewritten to eliminate the ambiguity.

Sometimes, it is more convenient to use carefully chosen ambiguous grammars, together with disambiguating rules that eliminate undesirable parse trees, leaving only one tree for each sentence.

Left-Recursive Grammars

A grammar is left recursive if it has a non-terminal A such that there is a derivation A ⇒⁺ Aα for some string.

In an immediate or direct left recursion, there is a production of the form A → Aα in which the leftmost symbol of the body is the same as the non-terminal at the head of the production. In an indirect left recursion, the definition of left recursion is satisfied via several derivations.

Left-Recursion Elimination

Left recursion poses problems for parsers. For recursive-descent top-down parsering, left recursion causes the parser to loop forever. Many bottom-up parsers expect the productions to be in normal form and will not accept left recursive forms.

Consequently, context-free grammars are often preprocessed to eliminate the left recursion.

A left recursive production can be eliminated by rewriting the offending production. Consider the following production where α and β are sequences of terminals and non-terminals that do not start with A.

A → Aα | β

We will rewrite the productions for A in the following manner using a new non-terminal R.

A → βR
R → αR | ε

In its general form, immediate left recursion can be eliminated by the following technique, which works for any arbitrary number of A-productions. Group the productions as

A → Aα₁ | Aα₂ | ... | Aαₙ | β₁ | β₂ | ... | βₘ

Where no βᵢ begins with an A. Then, replace the A-productions by

A → β₁A′ | β₂A′ | ... | βₘA′
A′ → α₁A′ | α₂A′ | ... | αₙA′ | ε

The non-terminal A generates the same strings as before but is no longer left recursive. This procedure eliminates all left recursion from the A and A′ productions, but it does not eliminate left recursion involving derivations of two or more steps, like the example below.

S → Aa | b
A → Ac | Sd | ε

This algorithm systematically eliminates left recursion from a grammar. It is guaranteed to work if the grammar has no cycles (derivations of the form A ⇒⁺ Aα) or ε-productions (productions of the form A → ε). Cycles and ε-productions can systematically be eliminated from a grammar.

Left Factoring

Left factoring is a grammar transformation that is useful for producing a grammar suitable for predictive or top-down parsing.

When the choice between two alternative A-productions is not clear, we may be able to rewrite the productions to defer the decision until enough of the input has been seen that we can make the right choice.

In general, if A → αβ₁ | αβ₂ are two A-productions, and the input begins with a non-empty string derived from α, we do not know whether to expand A to αβ₁ or αβ₂. However, we can defer the decision by expanding A to αA′. Then, after seeing the input derived from α′, we expand A′toβ₁or toβ₂`. The left-factored original productions become the following.

A → αA′
A′ → β₁ | β₂

This algorithm implements this approach for the general case.

Non-Context-Free Language Constructs

When designing a programming language, there are certain aspects that cannot be expressed using context-free grammars (CFGs). Here are a few notable examples:

Declaration Before Use: CFGs cannot enforce that all identifiers are declared before they are used within a program. This requires semantic analysis beyond syntactic rules.
Function Parameter Matching: CFGs cannot ensure that the number of actual parameters passed to a function matches the number of formal parameters declared in its definition.
Semantic Rules: CFGs are limited to syntactic structures and cannot reason about semantic aspects, such as verifying type compatibility during operations or type checking in general.

These limitations necessitate additional mechanisms, such as semantic analysis or type systems, to fully validate programs.

Top-Down Parsing

Top-down parsing can be understood as constructing a parse tree for the input string, starting from the root and creating the nodes of the parse tree in preorder. Equivalently, top-down parsing can be viewed as finding a leftmost derivation for an input string.

At each step, the key problem is determining the production to be applied for a non-terminal A. Once an A-production is chosen, the rest of the parsing process consists of matching the terminal symbols in the production body with the input string.

The class of grammars for which we can construct predictive parsers looking k symbols ahead in the input is sometimes called the LL(k) class.

Recursive-Descent Parsing

A recursive-descent parser consists of a set of procedures, one for each non-terminal symbol. Execution begins with the procedure for the start symbol, which stops successfully if its procedure body scans the entire input string.

1:  void A() {
2:    Choose an A-production, A → X₁ X₂ ... Xₖ
3:    for (i = 1 to k) {
4:      if (Xᵢ is a non-terminal) {
5:        call procedure Xᵢ();
6:      } else if (Xᵢ equals the current input symbol a) {
7:        advance the input to the next symbol;
8:      } else {
9:        /* an error has occurred */
10:     }
11:   }
12: }

General recursive-descent requires backtracking with repeated scans over the input. Backtracking parsers are not common due to the fact that backtracking is rarely needed to parse programming language constructs.

To account for backtracking in the above pseudocode, we first need to try each of several A-productions in some order at line 2. Then, failure at line 9 is not the ultimate error and we need to return to line 2 and try another A-production. If there are no more A-productions to try, we declare that an input error has been occurred. In order to try another A-production, we need to be able to reset the input pointer to where it was when we first reached line 2.

A left-recursive grammar can cause a recursive-descent parser, even one with backtracking, to go into an infinite loop.

FIRST and FOLLOW

FIRST and FOLLOW are associated with a grammar G. During top-down parsing, FIRST and FOLLOW help with selecting which production to use, based on the next input symbol. During panic-mode error recovery, sets of tokens produced by FOLLOW can be used as synchronizing tokens.

FIRST

Define FIRST(α), where α is any string of grammar symbols, to be the set of terminals that begin strings derived from α. If S ⇒^* ε, then ε is also in FIRST(α).

To compute FIRST(X) for all grammar symbols X, we apply the following rules until no more terminals or ε can be added to any FIRST set.

If X is a terminal, then FIRST(X) = {X}.
If X is a non-terminal and X → Y₁ Y₂ ... Yₖ is a production for some k >= 1, then place a in FIRST(X) if for some i, a is in FIRST(Yᵢ), and ε is in all of FIRST(Y₁), ..., FIRST(Yᵢ−₁); that is, Y₁ ... Yᵢ−₁ ⇒^* ε. If ε is in FIRST(Yⱼ) for all j = 1, 2, ..., k, then add ε to FIRST(X). Note that everything in FIRST(Y₁) is surely in FIRST(X). If Y₁ does not derive ε, then we add nothing more to FIRST(X), but if Y₁ ⇒^* ε, then we add FIRST(Y₂), and so on.
If X → ε is a production, then add ε to FIRST(X).

We can now compute FIRST for any string X₁ X₂ ... Xₙ as follows.

Add all non-empty symbols of FIRST(X₁) to FIRST(X₁ X₂ ... Xₙ).
If ε is in FIRST(X₁), add the non-empty symbols of FIRST(X₂).
If ε is in FIRST(X₁) and FIRST(X₂), add the non-empty symbols of FIRST(X₃).
Continue like that up to Xₙ.
If for all i, ε is in FIRST(Xᵢ), add ε to FIRST(X₁ X₂ ... Xₙ).

FOLLOW

Define FOLLOW(A), for non-terminal A, to be the set of terminals a that can appear immediately to the right of A in some sentential form. Strictly speaking, the set of terminals a such that there exists a derivation of the form S ⇒^* αAaβ, for some α and β.

There may have been symbols between A and a at some point during the derivation, but if so, they derived ε and disappeared. Moreover, if A can be the rightmost symbol in some sentential form, then $ is in FOLLOW(A). $ is a special endmarker symbol that is assumed not to be a symbol of any grammar.

To compute FOLLOW(A) for all non-terminals A, we apply the following rules until nothing can be added to any FOLLOW set.

Place $ in FOLLOW(S), where S is the start symbol, and $ is the input right endmarker.
If there is a production A → αBβ, then everything in FIRST(β) except ε is in FOLLOW(B).
If there is a production A → αB, or a production A → αBβ, where FIRST(β) contains ε, then everything in FOLLOW(A) is in FOLLOW(B).

LL(1) Grammars and Predictive Parsers

A predictive parser is a recursive-descent parser without backtracking. It can be constructed for a class of grammars called LL(1). The first "L" in LL(1) stands for scanning the input from left to right, the second "L" for producing a leftmost derivation, and the "1" for using one input symbol of lookahead at each step.

The class of LL(1) grammars is expressive enough to cover most programming constructs. There are a few considerations though. No left-recursive or ambiguous grammar can be LL(1).

A grammar G is LL(1) if and only if whenever A → α | β are two distinct productions of G, the following conditions hold:

For no terminal a do both α and β derive strings beginning with a.
At most one of α and β can derive the empty string ε.
If β ⇒^* ε then α does not derive any string beginning with a terminal in FOLLOW(A). Likewise, if α ⇒^* ε, then β does not derive any string beginning with a terminal in FOLLOW(A).

The first two conditions are equivalent to the statement that FIRST(α) and FIRST(β) are disjoint sets. The third condition is saying that if ε is in FIRST(β), then FIRST(α) and FOLLOW(A) are disjoint sets, and likewise if ε is in FIRST(α).

Predictive parsers can be constructed for LL(1) grammars since the proper production to apply for a non-terminal can be selected by looking only at the current input symbol.

Predictive Parsing Tables

This algorithm collects the information from FIRST and FOLLOW sets into a predictive parsing table M[A,a], where A is a non-terminal, and a is a terminal or the symbol $, the input endmarker.

This algorithm can be applied to any grammar G to produce a parsing table M. If G is left-recursive or ambiguous, then M will have at least one multiply defined entry. There are some grammars for which no amount of alteration (left-recursion elimination and left factoring) will produce an LL(1) grammar.

Predictive Parsing Transition Diagrams

Transition diagrams are useful for visualizing predictive parsers. To construct a transition diagram for a grammar, first eliminate left recursion and then left factor the grammar. Now, for each non-terminal A,

Create an initial and final (return) state.
For each production A → X₁X₂...Xₖ, create a path from the initial to the final state, with edges labeled X₁, X₂, ..., Xₖ. If A → ε, the path is an edge labeled ε.

Predictive parsers have one transition diagram per non-terminal. Edge labels can be terminals or non-terminals:

A transition labeled with a terminal is taken when that terminal matches the next input symbol.
A transition labeled with a non-terminal requires invoking the corresponding diagram.

In LL(1) grammars, ambiguity about whether to take an ϵ-transition can be resolved using lookahead. If no other transition applies, ϵ-transitions serve as the default choice.

Non-Recursive Predictive Parsing

A non-recursive predictive parser can be built by maintaining a stack explicitly. The parser mimics a leftmost derivation. If w is the input that has been matched so far, then the stack holds a sequence of grammar symbols α such that S ⇒^*_lm wα

A diagram for a tablen-driven parser is shown below. It has an input buffer, a stack containing a sequence of grammar symbols, a parsing table constructed using this algorithm, and an output stream.

                  ┌─┬─┬─┬─┬─┬─┬─┬─┐
                  │ │ │ │ │a│+│b│$│
                  └─┴─┴─┴─┘▲└─┴─┴─┘
                           │
                    ┌──────┴─────┐
             ┌─┐    │ Predictive │
             │X│◄───┤   Parser   ├───► Output
             ├─┤    └─────┬──────┘
             │Y│          │
             ├─┤    ┌─────▼──────┐
             │Z│    │  Parsing   │
             ├─┤    │  Table M   │
             │$│    └────────────┘
             └─┘

The input buffer contains the string to be parsed, followed by the endmarker $. We reuse the symbol $ to mark the bottom of the stack, which initially contains the start symbol of the grammar on top of $.

The parser takes X, the symbol on top of the stack, and a, the current input symbol. If X is a non-terminal, the parser chooses an X-production by consulting entry M[X,a]. Otherwise, it checks for a match between the terminal X and current input symbol a. This behavior is implemented using this algorithm.

Error Recovery in Predictive Parsing

Panic-mode error recovery works by discarding symbols from the input stream until a token from a designated set of synchronizing tokens is encountered. Its effectiveness relies on the selection of the synchronizing set.

Using FOLLOW(A) as the Synchronizing Set: Start by including all symbols from FOLLOW(A) in the synchronizing set for non-terminal A. Skipping tokens until a symbol in FOLLOW(A) is found allows the parser to pop A from the stack and potentially resume parsing.
Enhancing Synchronizing Sets with Higher-Level Constructs: FOLLOW(A) alone may not suffice. For example, missing semicolons might cause keywords starting new statements to be skipped. To handle hierarchical language structures, add symbols representing higher-level constructs (e.g., keywords) to the synchronizing sets of lower-level constructs (e.g., expressions).
Including FIRST(A) in Synchronizing Sets: Adding symbols from FIRST(A) to a non-terminal's synchronizing set can enable parsing to resume under A if an appropriate token appears in the input.
Handling Empty-String Productions: If a non-terminal can derive the empty string, its production can serve as a fallback. While this may delay error detection, it avoids missing errors and simplifies recovery by reducing the number of non-terminals to handle.
Terminal Mismatch Recovery: If the terminal at the top of the stack does not match, a simple strategy is to pop the terminal, issue an error message, and continue parsing. This effectively treats all other tokens as the synchronizing set for that terminal.

Bottom-Up Parsing

A bottom-up parse can be viewed as the construction of a parse tree for an input string beginning at the leaves (the bottom) and working up towards the root (the top).

Reductions

Bottom-up parsing can be thought of as reducing a string w to the start symbol of the grammar. At each reduction step, a specific substring matching the body of a production is replaced by the non-terminal at the head of that production. The key decisions during bottom-up parsing are about when to reduce and about what production to apply.

By definition, a reduction is the reverse of a step in a derivation. Therefore, the goal of bottom-up parsing is to construct a derivation in reverse.

Handle Pruning

Bottom-up parsing during a left-to-right scan of the input constructs a rightmost derivation in reverse.

Informally, a handle is a substring that matches the body of a production, and whose reduction represents one step along the reverse of a rightmost derivation.

Formally, S ⇒^*_rm αAw ⇒_rm αβw, then production A → β in the position following α is a handle of αβw. Alternatively, a handle of a right-sentential form γ is a production A → β and a position of γ where the string β may be found, such that replacing β at that position by A produces the previous right-sentential form in a rightmost derivation of γ.

The string w to the right of the handle must contain only terminal symbols. We refer to the body β rather than A → β as a handle for convenience.

The grammar could be ambiguous with more than one rightmost derivation of αβw. If a grammar is unambiguous, then every right-sentential form of the grammar has exactly one handle.

A rightmost derivation in reverse can be obtained by handle pruning. We start with a string of terminals w to be parsed. If w is a sentence of the grammar at hand, then let w = γ_n, where n is the nth right-sentential form of some as yet unknown rightmost derivation

S = γ₀ ⇒ᵣₘ γ₁ ⇒ᵣₘ γ₂ ⇒ᵣₘ ... ⇒ᵣₘ γₙ₋₁ ⇒ᵣₘ γₙ = w

To reconstruct this derivation in reverse order, we locate the handle βₙ in γₙ and replace βₙ by the head of the relevant production Aₙ → βₙ to obtain the previous right-sentential form γₙ₋₁. If by continuing this process we produce a right-sentential form with only the start symbol S, then we halt and announce successful completion of parsing.

Shift-Reduce Parsing

Shift-reduce parsing is a form of bottom-up parsing in which a stack holds grammar symbols and an input buffer holds the rest of the string to be parsed. The handle always appears at the top of the stack just before it is identified as the handle. We use $ to mark the bottom of the stack and also the right end of the input. Initially, the stack is empty, and the string w is on the input.

Stack	Input
`$`	`w$`

During a left-to-right scan of the input string, the parser shifts zero or more input symbols onto the stack, until it is ready to reduce a string β of grammar symbols on top of the stack. It then reduces β to the head of the appropriate production. The parser repeats this cycle until it has detected an error or until the stack contains the start symbol and the input is empty.

Stack	Input
`$S`	`$`

Upon entering this configuration, the parser halts and announces successful completion of parsing. The use of a stack in shift-reduce parsing is justified by the fact that the handle will always eventually appear on top of the stack, never inside.

While the primary operations are shift and reduce, there are actually four possible actions a shift-reduce parser can make:

Shift: Shift the next input symbol onto the top of the stack.
Reduce: The right end of the string to be reduced must be at the top of the stack. Locate the left end of the string within the stack and decide with what non-terminal to replace the string.
Accept: Announce successful completion of parsing.
Error: Discover a syntax error and call an error recovery routine.

Conflicts

There are context-free grammars for which shift-reduce parsing cannot be used. Every shift-reduce parser for such a grammar can reach a configuration in which the parser, knowing the entire stack and the next k input symbols, cannot decide whether to shift or to reduce (a shift/reduce conflict), or cannot decide which of several reductions to make (a reduce/reduce conflict).

Technically speaking, these grammars are not in the LR(k) class of grammars in which The k in LR(k) refers to the number of symbols of lookahead on the input. Grammars used in compiling usually fall in the LR(1) class with one symbol of lookahead at most.

An ambiguous grammar can never be a LR grammar. Another common setting for conflicts occurs when we know we have a handle, but the stack contents and the next input symbol are insufficient to determine which production should be used in a reduction.

LR Parsing

The most common type of bottom-up parser is LR(k) parsing. The L is for left-to-right scanning of the input, the R for constructing a rightmost derivation in reverse, and the k for the number of input symbols of lookahead that are used in making parsing decisions. The cases k = 0 or k = 1 are of practical interest. We shall only consider LR parsers with k <= 1. When (k) is omitted, k is assumed to be 1.

LR parsers are table-driven, much like the non-recursive LL parsers. For a grammar to be LR it is sufficient that a left-to-right shift-reduce parser be able to recognize handles of right-sentential forms when they appear on top of the stack.

LR parsing is attractive for a number of of reasons:

LR parsers can be constructed to recognize nearly all programming language constructs for which context-free grammars can be written.
The LR-parsing method is the most general non-backtracking shift-reduce parsing method known. It can be implemented as efficiently as other more primitive shift-reduce methods.
An LR parser can detect a syntactic error as soon as it is possible to do so on a left-to-right scan of the input.
The class of grammars that can be parsed using LR methods is a proper superset of the class of grammars that can be parsed with predictive or LL methods. For a grammar to be LR(k), we must be able to recognize the occurrence of the right side of a production in a right-sentential form, with k input symbols of lookahead. This requirement is far less stringent than that for LL(k) grammars where we must be able to recognize the use of a production seeing only the first k symbols of what its right side derives.

For a practical grammar, it is too much work to construct an LR parser by hand and an LR parser generator is needed. Such a generator takes a context-free grammar and generates a parser for that grammar. If the grammar contains ambiguities or other constructs that cannot be parsed in a left-to-right scan of the input, then the parser generator locates these constructs and provides detailed diagnostic messages.

SLR Parsers

Items and LR(0) Automation

An LR parser makes shift-reduce decisions by maintaining states to keep track of where we are in a parse. States represent sets of items. An LR(0) item (item for short) of a grammar G is a production of G with a dot at some position of the body. Intuitively, an item indicates how much of a production we have seen at a given point in the parsing process. The production A → ε generates only one item, A → ..

One collection of sets of LR(0) items, called the canonical LR(0) collection, provides the basis for constructing a deterministic finite automaton that is used to make parsing decisions. Such an automaton is called an LR(0) automaton. Each state of the LR(0) automaton represents a set of items in the canonical LR(0) collection.

To construct the canonical LR(0) collection for a grammar, we define an augmented grammar and two functions, CLOSURE and GOTO. If G is a grammar with start symbol S, then G′, the augmented grammar for G, is G with a new start symbol S′ and production S′ → S. The purpose of this new starting production is to indicate to the parser when it should stop parsing and announce acceptance of the input. Acceptance occurs when and only when the parser is about to reduce by S′ → S.

Closure of Item Sets

If I is a set of items for a grammar G, then CLOSURE(I) is the set of items constructed from I by the two rules:

Initially, add every item in I to CLOSURE(I).
If A → α.Bβ is in CLOSURE(I) and B → γ is a production, then add the item B → .γ to CLOSURE(I), if it is not already there. Apply this rule until no more new items can be added to CLOSURE(I).

Intuitively, A → α.Bβ in CLOSURE(I) indicates that, at some point in the parsing process, we think we might next see a substring derivable from Bβ as input. The substring derivable from Bβ will have a prefix derivable from B by applying one of the B-productions. We add items for all the B-productions; if B → γ is a production, we also include B → .γ in CLOSURE(I).

A convenient way to implement the function closure is to keep a boolean array added, indexed by the non-terminals of G, such that added[B] is set to true if and when we add the item B → .γ for each B-production B → γ.

Here is the algorithm for computing CLOSURE(I).

if one B-production is added to the closure of I with the dot at the left end, then all B-productions will be similarly added to the closure. Hence, it is not necessary in some circumstances actually to list the items B → .γ added to I by CLOSURE. A list of the non-terminals B whose productions were so added will suffice.

We divide all the sets of items of interest into two classes:

Kernel items: the initial item, S′ → .S, and all items whose dots are not at the left end.
Non-kernel items: all items with their dots at the left end, except for S′ → .S.

Moreover, each set of items of interest is formed by taking the closure of a set of kernel items. The items added in the closure can never be kernel items. Thus, we can represent the sets of items we are really interested in with very little storage if we throw away all non-kernel items, knowing that they could be regenerated by the closure process.

The Function GOTO

The second useful function is GOTO(I,X) where I is a set of items and X is a grammar symbol. GOTO(I,X) is defined to be the closure of the set of all items [A → αX.β] such that [A → α.Xβ] is in I.

Intuitively, the GOTO function is used to define the transitions in the LR(0) automaton for a grammar. The states of the automaton correspond to sets of items, and GOTO(I,X) specifies the transition from the state for I under input X.

Now, this algorithm constructs C, the canonical collection of sets of LR(0) items for an augmented grammar G′.

Use of The LR(0) Automation

The idea behind Simple LR or SLR parsing is the construction from the grammar of the LR(0) automaton. The states of this automaton are the sets of items from the canonical LR(0) collection, and the transitions are given by the GOTO function.

The start state of the LR(0) automaton is CLOSURE({[S′ → .S]}), where S′ is the start symbol of the augmented grammar. All states are accepting states. We say state j to refer to the state corresponding to the set of items I_j.

Assume the string γ of grammar symbols takes the LR(0) automaton from the start state 0 to some state j. Then, shift on next input symbol a if state j has a transition on a. Otherwise, we choose to reduce; the items in state j will tell us which production to use.

The LR-Parsing Algorithm

A schematic of an LR parser is shown below. It consists of an input, an output, a stack, a driver program, and a parsing table that has two parts (ACTION and GOTO). The driver program is the same for all LR parsers. Only the parsing table changes from one parser to another. The parsing program reads characters from an input buffer one at a time. Where a shift-reduce parser would shift a symbol, an LR parser shifts a state. Each state summarizes the information contained in the stack below it.

                  ┌────┬─────┬─────┬────┬────┬───┐
           Input  │ a₁ │ ... │ aᵢ  │... │ aₙ │ $ │
                  └────┴─────┴──▲──┴────┴────┴───┘
                                │
           Stack                │
          ┌──────┐       ┌──────┴──────┐
          │      │       │     LR      │
          │  Sₘ  ◄───────┤   Parsing   ├────► Output
          │      │       │   Program   │
          ├──────┤       └──┬────────┬─┘
          │      │          │        │
          │ Sₘ₋₁ │          │        │
          │      │     ┌────▼────┬───▼───┐
          ├──────┤     │         │       │
          │      │     │ ACTION  │ GOTO  │
          │ ...  │     │         │       │
          │      │     └─────────┴───────┘
          ├──────┤
          │      │
          │  $   │
          │      │
          └──────┘

The stack holds a sequence of states, s₀s₁...s_m, where s_m is on top. In the SLR method, the stack holds states from the LR(0) automaton. The canonical LR and LALR methods are similar. By construction, each state has a corresponding grammar symbol. Recall that states correspond to sets of items, and that there is a transition from state i to state j if GOTO(I_i,X) = I_j. All transitions to state j must be for the same grammar symbol X. Thus, each state, except the start state 0, has a unique grammar symbol associated with it.

Structure of The LR Parsing Table

The parsing table consists of two parts: a parsing-action function ACTION and a goto function GOTO.

The ACTION function takes as arguments a state i and a terminal a (or $, the input end-marker). The value of ACTION[i,a] can have one of four forms:
- Shift j, where j is a state. The action taken by the parser effectively shifts input a to the stack, but uses state j to represent a.
- Reduce A → β. The action of the parser effectively reduces β on the top of the stack to head A.
- Accept. The parser accepts the input and finishes parsing.
- Error. The parser discovers an error in its input and takes some corrective action.
We extend the GOTO function, defined on sets of items, to states. If GOTO[I_i,A] = I_j , then GOTO also maps a state i and a non-terminal A to state j.

LR-Parser Configurations

To describe the behavior of an LR parser, it helps to have a notation representing the complete state of the parser: its stack and the remaining input. A configuration of an LR parser is a pair:

(s₀s₁...s_m, a_ia_i+1...a_n$)

where the first component is the stack contents (top on the right), and the second component is the remaining input. This configuration represents the right-sentential form

X₁X₂...X_m, a_ia_i+1...a_n`

in essentially the same way as a shift-reduce parser would. The only difference is that instead of grammar symbols, the stack holds states from which grammar symbols can be recovered. That is, X_i is the grammar symbol represented by state s_i.

The start state of the parser, s₀, does not represent a grammar symbol, and serves as a bottom-of-stack marker, as well as playing an important role in the parse.

Behavior of The LR Parser

The next move of the parser from the configuration above is determined by reading a_i, the current input symbol, and s_m, the state on top of the stack, and then consulting the entry ACTION[s_m,a_i] in the parsing action table.

If ACTION[s_m,a_i] = shift s, the parser executes a shift move. It shifts the next state s onto the stack, entering the configuration

(s₀s₁...s_m,s, a_i+1...a_n$)

The symbol a_i need not be held on the stack, since it can be recovered from s, if needed (which in practice it never is). The current input symbol is now a_i+1.

If ACTION[s_m,a_i] = reduce A → β, then the parser executes a reduce move, entering the configuration

(s₀s₁...s_m-r,s, a_ia_i+1...a_n$)

where r is the length of β, and s = GOTO[s_m-r,A]. For the LR parsers we shall construct, X_m-r+1...X_m the sequence of grammar symbols corresponding to the states popped off the stack, will always match β. The output of an LR parser is generated after a reduce move by executing the semantic action associated with the reducing production.

If ACTION[s_m,a_i] = accept, parsing is completed.

If ACTION[s_m,a_i] = error, the parser has discovered an error and calls an error recovery routine.

The above LR-parsing algorithm is summarized here.

Constructing SLR-Parsing Tables

The SLR method begins with LR(0) items and LR(0) automata. Given a grammar G, we augment G to produce G′, with a new start symbol S′. From G′, we construct C, the canonical collection of sets of items for G′ together with the GOTO function.

The ACTION and GOTO in the parsing table are constructed using this algorithm. It requires us to know FOLLOW(A) for each non-terminal A of a grammar.

The parsing table determined by this algorithm is called the SLR(1) table for G. An LR parser using the SLR(1) table for G is called the SLR(1) parser for G, and a grammar having an SLR(1) parsing table is said to be SLR(1).

Viable Prefixes

The LR(0) automaton for a grammar characterizes the input strings that can appear on the stack of a shift-reduce parser. The stack contents must be a prefix of a right-sentential form. If the stack holds α and the rest of the input is x, then a sequence of reductions will take αx to S.

S ⇒^*_rm αx

Since the parser must not shift past the handle, not all prefixes of right-sentential forms can appear on the stack. The prefixes of right sentential forms that can appear on the stack of a shift-reduce parser are called viable prefixes.

A viable prefix is a prefix of a right-sentential form that does not continue past the right end of the rightmost handle of that sentential form. It is always possible to add terminal symbols to the end of a viable prefix to obtain a right-sentential form. SLR parsing is based on the fact that LR(0) automata recognize viable prefixes.

It is a central theorem of LR-parsing theory that the set of valid items for a viable prefix γ is exactly the set of items reached from the initial state along the path labeled γ in the LR(0) automaton for the grammar.

An NFA N for recognizing viable prefixes can be constructed by treating the items themselves as states. There is a transition from A → α.Xβ to A → αX.β labeled X, and there is a transition from A → α.Bβ to B → .γ labeled ε. Then CLOSURE(I) for set of items (states of N) I is exactly the ε-closure of a set of NFA states. Thus, GOTO(I,X) gives the transition from I on symbol X in the DFA constructed from N by the subset construction.

Canonical LR Parsers

We now enhance the earlier LR parsing techniques by incorporating one symbol of lookahead from the input. This can be achieved through two different methods:

The canonical-LR or just LR method, which makes full use of the lookahead symbols. This method uses a large set of items, called the LR(1) items.
The lookahead-LR or LALR method, which is based on the LR(0) sets of items, and has many fewer states than typical parsers based on the LR(1) items.

Canonical LR(1) Items

In the SLR method, state i calls for reduction by A → α if the set of items Iᵢ contains item [A → α.] and input symbol a is in FOLLOW(A). However, in some cases, when state i appears on top of the stack, the viable prefix βα on the stack is such that βA cannot be followed by a in any right-sentential form. Thus, the reduction by A → α should be invalid on input a.

It is possible to carry more information in the state that will allow us to rule out some of these invalid reductions by A → α.. By splitting states when necessary, we can arrange to have each state of an LR parser indicate exactly which input symbols can follow a handle α for which there is a possible reduction to A.

The additional information is included in the state by redefining items to include a terminal symbol as a second component. This changes the general form of an item to [A → α.β, a], where A → αβ represents a production, and a is either a terminal symbol or the right endmarker $. Such an object is referred to as an LR(1) item, where the 1 indicates the length of the second component, known as the lookahead of the item.

The lookahead does not impact an item of the form [A → α.β, a] when β is not ε. However, for an item of the form [A → α., a], a reduction by A → α is performed only if the next input symbol matches a.

Formally, we say LR(1) item [A → α.β, a] is valid for a viable prefix γ if threre is a derivation S ⇒^*_rm δAw ⇒_rm δαβw, where

γ = δα, and
Either a is the first symbol of w, or w is ε and a is $.

Constructing LR(1) Sets of Items

Algorithm constructs the sets of LR(1) items for an augmented grammar.

Canonical LR(1) Parsing Tables

Algorithm constructs the LR(1) ACTION and GOTO functions from the set of LR(1) items. These functions are still represented in a table, as before, but the values of the entries are the only difference.

LALR Parsers

The lookahead-LR (LALR) method builds upon the LR(0) sets of items and uses significantly fewer states compared to parsers based on LR(1) items. By strategically incorporating lookaheads into the LR(0) items, the LALR method can handle a wider range of grammars than the SLR method while keeping parsing tables as compact as those of SLR.

This method is often used in practice because it produces tables that are significantly smaller than canonical LR tables, while still allowing most common syntactic constructs of programming languages to be conveniently expressed using an LALR grammar. When comparing parser sizes, the SLR and LALR tables for a grammar always contain the same number of states, which is typically several hundred for a language like C. In contrast, the canonical LR table for a language of similar size usually contains several thousand states.

Constructing LALR Parsing Tables

Generally, we can look for sets of LR(1) items having the same core, that is, set of first components, and we may merge these sets with common cores into one set of items.

Suppose we have an LR(1) grammar, that is, one whose sets of LR(1) items produce no action conflicts. We replace all states having the same core with their union. Suppose in the union there is a conflict on lookahead a because there is an item [A → α.] calling for a reduction by A → α, and there is another item [A → β.aγ, b] calling for a shift. Then some set of items from which the union was formed has item [A → α.], and since the cores of all these states are the same, it must have an item [A → β.aγ, c] for some c. But then this state has the same shift/reduce conflict on a, and the grammar was not LR(1) as we assumed. It is possible, however, that a merger will produce a reduce/reduce conflict.

Consider an LR(1) grammar, which is defined as a grammar where the sets of LR(1) items do not produce any action conflicts. Now, suppose we combine all states that share the same core by merging them into a single state. If this merged state introduces a conflict on a lookahead symbol a, it means there is an item [A → α., a] that calls for a reduction by A → α, and another item [A → β.aγ, b] that calls for a shift on a.

In this scenario, one of the original states contributing to the merged state must have contained the item [A → α., a]. Since all states in the union share the same core, that state must also contain the item [A → β.aγ, c] for some lookahead c. This implies that the original state had a shift/reduce conflict on a. However, this contradicts the assumption that the grammar is LR(1) and therefore conflict-free.

On the other hand, it is possible that merging states introduces a reduce/reduce conflict.

Algorithm is the first of two algorithms for constructing LALR parsing tables. The basic approach involves constructing the sets of LR(1) items and merging those with identical cores if no conflicts occur. However, building the complete collection of LR(1) item sets is typically impractical due to the significant space and time requirements.

We can make several enhancements to the algorithm to avoid constructing the full collection of sets of LR(1) items.

Any set of LR(0) or LR(1) items I can be represented by its kernel, which consists of items that are either the initial item [S′ → .S] or [S′ → .S, $], or items where the dot is not positioned at the beginning of the production body.
The LALR(1) item kernels can be constructed from the LR(0) item kernels through a process of propagation and the spontaneous generation of lookaheads.
Once we have the LALR(1) kernels, we can generate the LALR(1) parsing table by closing each kernel using the CLOSURE function, and then computing the table entries via the algorithm, treating the LALR(1) sets of items as though they were canonical LR(1) sets of items.

Algorithms 1 and 2 give the basis for efficient construction of LALR parsing parsing tables.

Using Ambiguous Grammars

Ambiguous grammars are inherently not LR. However, they can be valuable for language specification and implementation. For certain language constructs, ambiguous grammars offer a more concise and natural representation compared to their unambiguous counterparts. They are also useful for isolating frequently occurring syntactic patterns, enabling special-case optimizations. By adding specific productions to the grammar, these special cases can be effectively represented.

Ambiguous grammars can be more practical than their unambiguous counterparts for language specification. For example, an ambiguous grammar may not enforce operator associativity or precedence directly, making it simpler and more flexible. This flexibility allows changes to associativity and precedence rules without altering the grammar's productions or increasing the complexity of the resulting parser.

In contrast, an unambiguous grammar that specifies associativity and precedence explicitly often requires additional productions, which can make the parsing process less efficient. The parser may spend significant time performing reductions with productions designed solely to enforce associativity or precedence. By using an ambiguous grammar, we can avoid these unnecessary reductions, resulting in a more efficient parsing process. Thus, ambiguous grammars can offer advantages in terms of simplicity and parser performance when carefully managed.

While the grammars we employ may be ambiguous, we always define disambiguating rules to ensure that each sentence has only one valid parse tree. This approach renders the overall language specification unambiguous and, in some cases, facilitates the creation of an LR parser that respects the same ambiguity-resolution rules. It is important to use ambiguous constructs carefully and in a controlled manner; otherwise, the parser's recognized language may become unpredictable.

Precedence and Associativity

Consider the following ambiguous grammar for expressions with operators + and *.

E → E + E | E * E | (E) | id

This grammar is ambiguous because it does not define the precedence or associativity of the + and * operators. The sets of LR(0) items for the ambiguous expression grammar, augmented with E′ → E are presented below.

┌──────[0]───────┐    ┌──────[1]───────┐    ┌──────[2]───────┐    ┌──────[3]───────┐
│ E′ → •E        │    │ E′ → E•        │    │ E → E "*" E•   │    │ E → E "+" E•   │
├╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌┤    │ E → E•"*" E    │    │ E → E•"*" E    │    │ E → E•"*" E    │
│ E → •E "*" E   │    │ E → E•"+" E    │    │ E → E•"+" E    │    │ E → E•"+" E    │
│ E → •E "+" E   │    └────────────────┘    └────────────────┘    └────────────────┘
│ E → •"(" E ")" │    ┌──────[5]───────┐    ┌──────[6]───────┐    ┌──────[7]───────┐
│ E → •"id"      │    │ E → E "*"•E    │    │ E → E "+"•E    │    │ E → "(" E•")"  │
└────────────────┘    ├╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌┤    ├╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌┤    │ E → E•"*" E    │
┌──────[4]───────┐    │ E → •E "*" E   │    │ E → •E "*" E   │    │ E → E•"+" E    │
│ E → "(" E ")"• │    │ E → •E "+" E   │    │ E → •E "+" E   │    └────────────────┘
└────────────────┘    │ E → •"(" E ")" │    │ E → •"(" E ")" │
┌──────[8]───────┐    │ E → •"id"      │    │ E → •"id"      │
│ E → "("•E ")"  │    └────────────────┘    └────────────────┘
├╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌╌┤    ┌──────[9]───────┐
│ E → •E "*" E   │    │ E → "id"•      │
│ E → •E "+" E   │    └────────────────┘
│ E → •"(" E ")" │
│ E → •"id"      │
└────────────────┘

Since the grammar mentioned above is ambiguous, parsing action conflicts arise when attempting to construct an LR parsing table from the sets of items. These conflicts occur in the states corresponding to the sets of items [2] and [3].

Using the SLR approach to build the parsing action table, the conflict in [3], between reducing by E → E + E and shifting on + or *, cannot be resolved because both + and * are in FOLLOW(E). Similarly, a conflict arises in [2], between reducing by E → E * E and shifting on inputs + and *.

In fact, such conflicts occur regardless of the specific LR parsing table construction method used. However, these conflicts can be resolved by applying precedence and associativity rules for + and *.

For example, consider the input id + id * id. When processing id + id, the parser (based on the sets of items described) enters state [3] and reaches a specific configuration.

PREFIX    STACK      INPUT
E + E     0 1 6 3    * id $

If * has higher precedence than +, the parser should shift * onto the stack, preparing to reduce the * and its surrounding id symbols into an expression. Conversely, if + has higher precedence, the parser should reduce E + E to E. Therefore, the precedence of + and * determines how to resolve the parsing action conflict between reducing E → E + E and shifting on * in state [3].

If the input had been id + id + id instead, the parser would still reach a configuration where the stack is 0 1 6 3 after processing id + id. On encountering the input +, there would again be a shift/reduce conflict in state [3]. However, in this case, the associativity of the + operator dictates how to resolve the conflict. If + is left associative, the correct action is to reduce by E → E + E, meaning the id symbols surrounding the first + must be grouped first.

Error Recovery in LR Parsing

An LR parser detects an error when it consults the parsing action table and encounters an error entry. Errors are never identified by consulting the GOTO table. The parser announces an error as soon as it determines there is no valid continuation for the input scanned so far. A canonical LR parser will announce an error without performing any reductions. In contrast, SLR and LALR parsers may perform several reductions before announcing an error, but they will never shift an invalid input symbol onto the stack.

In LR parsing, we can use panic-mode error recovery as follows: the parser scans down the stack to locate a state s with a valid GOTO entry for a specific non-terminal A. It then discards zero or more input symbols until it encounters a symbol a that can legitimately follow A. The parser then pushes the state GOTO(s, A) onto the stack and resumes normal parsing. There may be multiple possible choices for the non-terminal A, which usually represent significant program constructs like expressions, statements, or blocks. This recovery strategy seeks to eliminate the erroneous phrase.

Phrase-level recovery is implemented by analyzing each error entry in the LR parsing table and determining the most likely programming mistake that could have caused the error, based on typical language usage. A suitable recovery procedure is then designed, modifying the top of the stack and/or the initial input symbols as necessary for each error entry.

When designing specific error-handling routines for an LR parser, each blank entry in the action table can be filled with a pointer to an error-handling routine chosen by the compiler designer. These routines may perform actions such as inserting or deleting symbols from the stack or input, modifying input symbols, or rearranging them. It is essential to ensure these choices prevent the LR parser from entering an infinite loop. A reliable approach guarantees that at least one input symbol will eventually be removed or shifted, or that the stack will shrink when the end of the input is reached. Removing a stack state associated with a non-terminal should be avoided, as it eliminates a construct that has already been successfully parsed.

Core Algorithms

Identifying Nullable Non-Terminals

# INPUT:  Grammar G.
# OUTPUT: A set of nullable non-terminals.
# METHOD:
#
#   1. Initialize an empty set nullable = {}
#
#   2. For each production A → ε of the grammar:
#        • Add A to nullable.
#
#   3. Repeat until no new non-terminals are added to nullable:
#        For each production A → A₁A₂...Aₙ of the grammar, where A ∉ nullable:
#          • Add A to nullable if all Aᵢ ∈ nullable.
#

Eliminating Empty Productions

# INPUT:  Grammar G.
# OUTPUT: An equivalent ε-free grammar.
# METHOD:
#
#   1. Identify all nullable non-terminals of the grammar.
#
#   2. For each production A → α of the grammar:
#        • Generate all possible combinations of α by including and excluding nullable non-terminals of α (α₁α₂...αₙ).
#        • For each combination αᵢ:
#            • If αᵢ ≠ ε, add the production A → αᵢ to the new grammar (if not already added).
#
#   3. If the start symbol S ∈ nullable,
#        • Add a new non-termnial S′ to the grammar
#        • Add a new production S′ → S | ε to the grammar.
#        • Set the start symbol of the new grammar to S′.
#

Eliminating Single Productions

# INPUT:  Grammar G.
# OUTPUT: An equivalent grammar with no single productions.
# METHOD:
#
#   1. Identify all single productions:
#        • Initialize an empty map singles = {}
#        • For each production A → α of the grammar:
#            • If α is a single non-terminal B, add B to the set singles[A].
#
#   2. Compute the transitive closure of non-terminals:
#        • Initialze an empty map closure = {}
#        • For each non-terminal A:
#            • Set closure[A][A] = true
#        • For each single production A → B in singles:
#            • Set closure[A][B] = true
#
#   3. Repeat until no new non-terminals are added to closure:
#        • For every non-terminal A in closure:
#            • For every non-terminal B in closure[A]:
#                • For every non-terminal C in closure[B]:
#                    • Set closure[A][C] = true
#
#   4. For every non-terminal A in closure:
#        • For every non-terminal B in closure[A]:
#            • For every production B → β:
#                • If β is not a single non-terminal, add production A → β to the new grammar.
#

Eliminating Unreachable Productions

# INPUT:  Grammar G.
# OUTPUT: An equivalent grammar with no unreachable productions.
# METHOD:
#
#   1. Initialize a set reachable = {S}, where S is the start symbol of the grammar.
#
#   2. Repeat until no new non-terminals are added to reachable:
#        • For each production A → α of the grammar, where A ∉ reachable:
#            • For each non-terminal B in α:
#                • If B ∉ reachable, add B to reachable.
#
#   3. For each production A → α of the grammar, where A ∈ reachable:
#        • Add production A → α to the new grammar.
#

Eliminating Cycles

# INPUT:  Grammar G.
# OUTPUT: An equivalent cycle-free grammar.
# METHOD:
#
#   1. Eliminate empty productions.
#   2. Eliminate single productions.
#   3. Eliminate unreachable productions.
#

Eliminating Left Recursion

# INPUT:  Grammar G with no cycles or ε-productions.
# OUTPUT: An equivalent grammar with no left recursion.
# METHOD: Apply the algorithm below to G.
#         The resulting non-left-recursive grammar may have ε-productions.

arrange the non-terminals in some order A₁, A₂, ..., Aₙ
for (each i from 1 to n)
  for (each j from 1 to i - 1) {
    replace each production of the form Aᵢ → Aⱼγ
    by the productions Aᵢ → δ₁γ | δ₂γ | ... | δₖγ,
    where Aⱼ → δ₁ | δ₂ | ... | δₖ are all current Aⱼ-productions
  }
  eliminate the immediate left recursion among the Aᵢ-productions

Left Factoring a Grammar

# INPUT:  Grammar G.
# OUTPUT: An equivalent left-factored grammar.
# METHOD: For each non-terminal A, find the longest prefix α common to two or more of its alternatives.
#         If α ≠ ε, there is a non-trivial common prefix, replace all of the A-productions
#         A → αβ₁ | αβ₂ | ... | αβₙ | γ where γ represents all alternatives that do not begin with α by
#
#             A → αA′
#             A′ → β₁ | β₂ | ... | βₙ
#
#         Here A′ is a new non-terminal.
#         Repeatedly apply this transformation until no two alternatives for a non-terminal have a common prefix.
#

Construction of Predictive Parsing Table

# INPUT:  Grammar G.
# OUTPUT: Parsing table M.
# METHOD: For each production A → α of the grammar, do the following:
#
#   1. For each terminal a in FIRST(α), add A → α to M[A,a].
#   2. If ε is in FIRST(α), then for each terminal b in FOLLOW(A), add A → α to M[A,b].
#      If ε is in FIRST(α) and $ is in FOLLOW(A), add A → α to M[A,$] as well.
#
# If, after performing the above, there is no production at all in M[A,a], then set M[A,a] to error.
#

Table-Driven Predictive Parsing

# INPUT:  A string w and a parsing table M for grammar G.
# OUTPUT: If w is in L(G), a leftmost derivation of w; otherwise, an error indication.
# METHOD: Initially, the parser is in a configuration with w$ in the input buffer
#         and the start symbol S of G on top of the stack, above $.

let a be the first symbol of w;
let X be the top stack symbol;
while (X != $) {  # stack is not empty
  if (X = a) {
    pop the stack and let a be the next symbol of w;
  } else if (X is a terminal) {
    error();
  } else if (M[X,a] is an error entry) {
    error();
  } else if (M[X,a] = X → Y₁ Y₂ ... Yₖ) {
    output the production X → Y₁ Y₂ ... Yₖ;
    pop the stack;
    push Yₖ, Yₖ₋₁, ..., Y₁ onto the stack, with Y₁ on top;
  }
  let X be the top stack symbol;
}

Computation of CLOSURE

SetOfItems CLOSURE(I) {
  J = I;
  repeat
    for ( each item A → α.Bβ in J )
      for ( each production B → γ of G′ )
        if ( B → .γ is not in J )
          add B → .γ to set J;
  until no more items are added to J on one round;
  return J;
}

Computation of The Canonical Collection of Sets of LR(0) Items

void items(G′) {
  C = {CLOSURE({[S′ → .S]})};
  repeat
    for ( each set of items I in C )
      for ( each grammar symbol X )
        if ( GOTO(I,X) is not empty and not in C )
          add GOTO(I,X) to C;
  until no new sets of items are added to C on a round;
}

Construction of SLR Parsing Table

# INPUT:  An augmented grammar G′.
# OUTPUT: The SLR parsing table functions ACTION and GOTO for G′.
# METHOD:
#
#   1. Construct C = {I₀, I₁, ..., Iₙ}, the collection of sets of LR(0) items for G′.
#
#   2. State i is constructed from Iᵢ. The parsing actions for state i are determined as follows:
#
#        (a) If [A → α.aβ] is in Iᵢ and GOTO(Iᵢ,a) = Iⱼ, then set ACTION[i,a] to "shift j". Here a must be a terminal.
#        (b) If [A → α.] is in Iᵢ, then set ACTION[i,a] to "reduce A → α" for all a in FOLLOW(A). Here A may not be S′.
#        (c) If [S′ → S.] is in Iᵢ, then set ACTION[i,$] to "accept".
#
#      If any conflicting actions result from the above rules, we say the grammar is not SLR(1).
#      The algorithm fails to produce a parser in this case.
#
#   3. The goto transitions for state i are constructed for all non-terminals A using the rule:
#      If GOTO(Iᵢ,A) = Iⱼ, then GOTO[i,A] = j.
#
#   4. All entries not defined by rules (2) and (3) are made "error".
#
#   5. The initial state of the parser is the one constructed from the set of items containing [S′ → .S].
#

LR-Parsing Algorithm

# INPUT:  An input string w and an LR-parsing table with functions ACTION and GOTO for a grammar G.
# OUTPUT: If w is in L(G), the reduction steps of a bottom-up parse for w; otherwise, an error indication.
# METHOD: Initially, the parser has s₀ on its stack, where s₀ is the initial state, and w$ in the input buffer.

let a be the first symbol of w$;
while (true) {
  let s be the state on top of the stack;
  if (ACTION[s,a] = shift t) {
    push t onto the stack;
    let a be the next input symbol;
  } else if (ACTION[s,a] = reduce A → β) {
    pop |β| symbols off the stack;
    let state t now be on top of the stack;
    push GOTO[t,A] onto the stack;
    output the production A → β;
  } else if (ACTION[s,a] = accept) {
    break;
  } else {
    call error-recovery routine;
  }
}

Construction of Sets of LR(1) Items

# INPUT:  An augmented grammar G′.
# OUTPUT: The set of LR(1) items that are the set of items valid for one or more viable prefixes of G′.
# METHOD: The procedures CLOSURE and GOTO and the main routine items for constructing the set of items.

SetOfItems CLOSURE(I) {
  repeat
    for ( each item [A → α.Bβ, a] in I )
      for ( each production B → γ of G′ )
        if ( B → .γ is not in J )
          for ( each terminal b in FIRST(βa) )
            add [B → .γ, b] to set I;
  until no more items are added to I;
  return I,
}

SetOfItems GOTO(I, X) {
  initialize J to be the empty set;
  for ( each item [A → α.Xβ, a] in I )
    add item [A → αX.β, a] to set J;
  return CLOSURE(J)
}

void items(G′) {
  initialize C to {CLOSURE({[S′ → .S, $]})};
  repeat
    for ( each set of items I in C )
      for ( each grammar symbol X )
        if ( GOTO(I,X) is not empty and not in C )
          add GOTO(I,X) to C;
  until no new sets of items are added to C;
}

Construction of Canonical LR(1) Parsing Table

# INPUT:  An augmented grammar G′.
# OUTPUT: The canonical LR parsing table functions ACTION and GOTO for G′.
# METHOD:
#
#   1. Construct C = {I₀, I₁, ..., Iₙ}, the collection of sets of LR(1) items for G′.
#
#   2. State i of the parser is constructed from Iᵢ. The parsing actions for state i are determined as follows:
#
#        (a) If [A → α.aβ, b] is in Iᵢ and GOTO(Iᵢ,a) = Iⱼ, then set ACTION[i,a] to "shift j". Here a must be a terminal.
#        (b) If [A → α., a] is in Iᵢ, A ≠ S′, then set ACTION[i,a] to "reduce A → α".
#        (c) If [S′ → S., $] is in Iᵢ, then set ACTION[i,$] to "accept".
#
#      If any conflicting actions result from the above rules, we say the grammar is not LR(1).
#      The algorithm fails to produce a parser in this case.
#
#   3. The goto transitions for state i are constructed for all non-terminals A using the rule:
#      If GOTO(Iᵢ,A) = Iⱼ, then GOTO[i,A] = j.
#
#   4. All entries not defined by rules (2) and (3) are made "error".
#
#   5. The initial state of the parser is the one constructed from the set of items containing [S′ → .S, $].
#

Construction of LALR Parsing Table

# INPUT:  An augmented grammar G′.
# OUTPUT: The LALR parsing table functions ACTION and GOTO for G′.
# METHOD:
#
#   1. Construct C = {I₀, I₁, ..., Iₙ}, the collection of sets of LR(1) items for G′.
#
#   2. For each core present among the set of LR(1) items,
#      find all sets having that core, and replace these sets by their union.
#
#   3. Let C′ = {J₀, J₁, ..., Jₘ} be the resulting sets of LR(1) items.
#      The parsing actions for state i are constructed from Jᵢ are determined as follows:
#
#        (a) If [A → α.aβ, b] is in Jᵢ and GOTO(Jᵢ,a) = Jⱼ, then set ACTION[i,a] to "shift j". Here a must be a terminal.
#        (b) If [A → α., a] is in Jᵢ, A ≠ S′, then set ACTION[i,a] to "reduce A → α".
#        (c) If [S′ → S., $] is in Jᵢ, then set ACTION[i,$] to "accept".
#
#      If any conflicting actions result from the above rules, we say the grammar is not LALR(1).
#      The algorithm fails to produce a parser in this case.
#
#   4. The GOTO table is constructed as follows.
#      If J is the union of one or more sets of LR(1) items, that is, J = I₁ ∪ I₂ ∪ ... ∪ Iₖ,
#      then the cores of GOTO(I₁, X), GOTO(I₂, X), ..., GOTO(Iₖ, X) are the same, since I₁, I₂, ..., Iₖ all have the same core.
#      Let K be the union of all sets of items having the same core as GOTO(I₁, X). Then GOTO(J, X) = K.
#

Determining Lookaheads

# INPUT:  The kernel K of a set of LR(0) items I and a grammar symbol X.
# OUTPUT: The lookaheads spontaneously generated by items in I for kernel items in GOTO(I, X)
#         and the items in I from which lookaheads are propagated to kernel items in GOTO(I, X).

for ( each item A → α.β in K ) {
  J = CLOSURE({[A → α.β, $]})
  if ( [B → γ.Xδ, a] is in J, and a is not $ )
    conclude that lookahead a is generated spontaneously for item
      B → γX.δ in GOTO(I, X);
  if ( [B → γ.Xδ, $] is in J )
    conclude that lookaheads propagate from A → α.β in I to
      B → γX.δ in GOTO(I, X);
}

Efficient Computation of Kernels of LALR(1) Collection of Sets of Items

# INPUT:  An augmented grammar G′.
# OUTPUT: The kernels of the LALR(1) collection of sets of items for G′.
# METHOD:
#
#   1. Construct the kernels of the sets of LR(0) items for G′.
#      If space is not at a premium, the simplest way is to construct the LR(0) sets of items,
#      as in (#computation-of-the-canonical-collection-of-sets-of-lr0-items), and then remove the nonkernel items.
#      If space is severely constrained, we may wish instead to store only the kernel items for each set,
#      and compute GOTO for a set of items I by first computing the closure of I.
#
#   2. Apply (#determining-lookaheads) to the kernel of each set of LR(0) items and grammar symbol X
#      to determine which lookaheads are spontaneously generated for kernel items in GOTO(I,X),
#      and from which items in I lookaheads are propagated to kernel items in GOTO(I,X).
#
#   3. Initialize a table that gives, for each kernel item in each set of items, the associated lookaheads.
#      Initially, each item has associated with it only those lookaheads that we determined in step 2 were generated spontaneously.
#
#   4. Make repeated passes over the kernel items in all sets.
#      When we visit an item i, we look up the kernel items to which i propagates its lookaheads, using information tabulated in step 2.
#      The current set of lookaheads for i is added to those already associated with each of the items to which i propagates its lookaheads.
#      We continue making passes over the kernel items until no more new lookaheads are propagated.
#

Implementation

Parsing Strategy

The most important choice when it comes to implementing a parser or parser generator, is the kind of parsing strategy or parsing approach which is equivalent to how we want to traverse the parsing tree, a.k.a abstract syntax tree (explicitly or implicitly). Here is a quick overview of our options:

Top-Down
- Recursive-Descent Parsing
  - Parser Combinators
  - Predictive Parsing
Bottom-Up
- LR Parsing
  - SLR Parsing
  - GLR Parsing
  - LALR Parsing

Top-Down vs. Bottom-Up

A parse tree for an input string is an n-ary tree where the root node represents the start symbol of the grammar. Each internal node corresponds to a non-terminal symbol and is associated with a production rule. The children of a node represent the grammar symbols on the right-hand side of that production rule. Each leaf node corresponds to a terminal symbol in the grammar.

The parse tree visually illustrates the syntactic structure of the input string based on the given grammar rules. Here is an example:

Top-down parsing is a parsing technique in which the parser starts constructing the parse tree from the root (the start symbol of the grammar) and proceeds downwards toward the leaves (terminal symbols). It attempts to match the input string with the production rules of the grammar by expanding non-terminals recursively. This approach is analogous to a preorder traversal (VLR) of the parse tree, where the root node is visited first, followed by its children, usually from left to right.

Bottom-Up parsing is a parsing technique that starts from the input symbols (leaves) and constructs the parse tree up to the start symbol (root) by reducing the input string using the grammar rules. It follows the shift-reduce approach, meaning it shifts input symbols onto a stack and reduces them using production rules. This method is equivalent to a postorder traversal (RLV) of the parse tree, where children are visited first, typically from right to left, before visiting their parent node.

Recursive-Descent Parsing

Recursive-descent parsing is a top-down parsing technique where each non-terminal in the grammar is implemented as a recursive function. This approach is often chosen when manually implementing a parser, as it follows the structure of the grammar closely, making the code easier to write, debug, maintain, and update.

The parser attempts to match the input against the grammar using recursive functions, where each function corresponds to a non-terminal symbol. When a terminal symbol is encountered, it checks if it matches the expected token in the input. If there is a mismatch, the parser may backtrack and try different functions based on other production rules. Backtracking involves undoing decisions when a parsing path is incorrect.

The running time of a recursive-descent parser with backtracking depends on the grammar and input. In the best case (no backtracking), the time complexity is O(n), but in the worst case (with significant backtracking), it can be exponential, O(2ⁿ). Left-recursive grammars or those requiring heavy backtracking can make the parser inefficient. However, memoization (a.k.a. packrat parsing) can optimize the parser, reducing its time complexity to O(n) by caching previously computed parsing results.

Parser combinators are a functional programming paradigm for constructing parsers by combining simpler parsers into more complex ones. A parser combinator is a higher-order function that takes one or more parsers as input and returns a new parser as output. Each production rule is implemented as a function, creating a modular and composable parser. This approach is especially useful for domain-specific languages (DSLs) and grammars with small input strings, such as regular expressions. However, the running time of parser combinators can be exponential and result in high memory consumption.

Predictive parsing is another top-down technique similar to recursive-descent parsing, but it eliminates backtracking by using lookahead tokens. It is typically implemented non-recursively and iteratively through a parsing table. Predictive parsing is designed for LL(1) grammars, where "LL" means the parser reads input from left to right and produces a leftmost derivation. The time complexity of a predictive parser is linear, O(n), but the LL(1) grammar class is restrictive. For an LL(1) parser to function properly, it must be able to choose the production rule with a single lookahead token. Left-recursive grammars pose a challenge, and eliminating left-recursion involves removing empty or single productions. To make a grammar suitable for predictive parsing, it typically undergoes many transformations, which can make the final grammar quite different from the original specification of the grammar.

LR Parsing

LR parsing is a bottom-up technique used for grammars in the LR(k) class, where "L" stands for left-to-right input scanning, "R" refers to constructing the right-most derivation, and "k" indicates the number of lookahead symbols. LR parsers utilize the shift-reduce method, where symbols are shifted onto a stack, and once the right-hand side of a production rule appears, they are reduced to the corresponding non-terminal symbol on the left-hand side. LR parsing is ideal for generating parsers and parser generators, and it can handle more expressive grammars compared to LL(1). LR parsers are also better for evaluating the input string or translating the input in one pass, as the parse tree is constructed from the leaves to the root.

LR(1) grammars are flexible and do not require significant transformations, maintaining a structure that is close to natural language. LR parser generators can handle ambiguous grammars by resolving shift/reduce and reduce/reduce conflicts through precedence information.

SLR (Simple LR) Parser uses canonical LR(0) items to construct a state machine (DFA). While it simplifies the construction process, it is less powerful than GLR parsers, sacrificing parsing ability for simplicity.

GLR (General LR) Parser, also known as the canonical LR parser, makes full use of lookahead symbols and employs LR(1) items to handle a wider range of grammars compared to SLR parsers. It can process more complex grammars but requires more resources.

LALR (Look-Ahead LR) Parser strikes a balance between LR and GLR parsing. Like the SLR parser, it uses canonical LR(0) items for the state machine, but refines the states by incorporating lookahead symbols. LALR merges states with identical core LR(0) items, handling lookahead symbols separately, which makes it more precise than SLR and resolves many of the conflicts SLR might encounter. LALR is more powerful than SLR but less powerful than GLR due to state merging, which can occasionally lead to conflicts when distinctions in lookahead contexts are lost. LALR parsing is the preferred choice for most grammars and languages, and many parser generators default to generating LALR parsers.

Error Recovery Strategy

Adopting an error recovery strategy is another important decision for implementing a parser or building a parser generator.

In panic-mode recovery, the parser discards input symbols one at a time until it encounters a designated synchronizing token. Once this token is found, the parser resumes normal parsing. This method allows the parser to continue parsing after encountering an error, enabling it to detect additional errors in the input. A major advantage of panic-mode is its simplicity and speed, as it guarantees the parser will not enter an infinite loop. However, it comes at the cost of skipping over large portions of the input, such as entire code blocks, without checking for further errors. Additionally, the synchronizing tokens must be chosen ahead of time, which can be challenging in some cases.

In phrase-level recovery, the parser attempts to make local corrections when it encounters an error, such as replacing a misplaced comma with a semicolon to allow parsing to continue. This approach is more precise than panic-mode because it attempts to preserve context by fixing specific errors instead of skipping input. Phrase-level recovery offers more detailed error handling and is particularly useful when errors are minor. However, this method is more complex as it requires careful selection of replacement symbols to avoid introducing infinite loops or further errors. Additionally, phrase-level recovery can struggle with errors that are caused earlier in the input, which may complicate the recovery process.

Error productions involve augmenting the grammar with special auxiliary production rules to handle common errors. These rules allow the parser to recognize and correct erroneous constructs directly. This method provides structured and systematic error recovery, helping to pinpoint specific issues in the input without skipping large sections. However, error productions are often highly specific to the grammar being parsed, making them difficult to generalize. This method can be effective when manually building a parser for a specific language, but it is challenging to apply in a parser generator context, where anticipating all possible errors in arbitrary grammars is not feasible.

Parser Architecture

                    ┌─────────────┐       ┌───────────────┐
    EBNF            │   Parser    │       │    PARSING    │
 Description ──────►│  Generator  ├──────►│     TABLE     │
                    └─────────────┘       │     (DFA)     │
                                          └───────▲───────┘
                                                  │
                                                  │
                    ┌─────────────┐       ┌───────┴───────┐
                    │   Lexer     │       │    PARSER     │
       INPUT ──────►│ (Generated) ├──────►│   Procedure   ├──────►│      │
                    └─────────────┘       └───────┬───────┘       ├──────┤
                                                  ┆               │      │
                                                  ┆               ├──────┤
                                          ┌───────▼───────┐       │      │
                                          │    Symbol     │       ├──────┤
                                          │     Table     │       │      │
                                          └───────────────┘       └──────┘
                                                                   STACK

A parser may optionally consult a symbol table. A symbol table is a data structure used to store information about the variables, functions, objects, and other entities encountered during parsing. It serves as a central repository for storing attributes of identifiers (such as type, scope, etc.), which are essential for semantic analysis, code generation, and optimization during compilation.

More Resources

Parsing
- Top-Down Parsers
  - Recursive Descent Parser
    - LL Parser
    - Parser Combinator
- Bottom-Up Parsering
  - Shift-reduce parser
  - LR Parser
